AB-031QS & AB-850XGLJ

Drinking Straw Packing Line

This drinking straw packing line combines the AB-031QS single-straw wrapping machine with the AB-850XGLJ bulk bagging machine. Individual straws are first wrapped in paper or BOPP, then counted and packed into outer bags containing approximately 50–500 pieces. The two-stage configuration supports continuous primary and secondary packaging for food-service and beverage-straw production.

Power：

3 kw
4 kw

Contact expert

Go back

Two-Stage Straw Packaging

The line first wraps each drinking straw individually and then groups the finished packs into larger outer bags.

High-Speed Single-Straw Wrapping

The AB-031QS wraps individual straws at approximately 200–600 pcs/min using paper or BOPP material with back-side sealing.

50–500-Piece Bulk Bagging

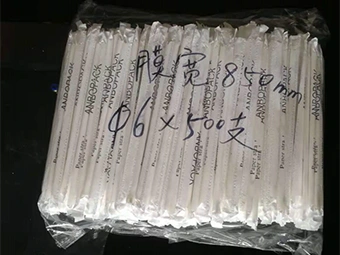

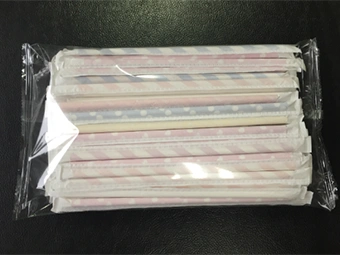

The AB-850XGLJ counts and packs approximately 50–500 individually wrapped straws into each outer bag at 3–10 bags/min.

Servo and Photocell Control

Servo-driven motion, touchscreen settings and photocell tracking support coordinated material feeding, sealing, cutting and print-mark positioning.

Automatic Material Detection

Sensors monitor straw and packaging-material supply. The machine stops automatically when no straw or no paper or film is detected, reducing empty packages and continuous packing errors.

Specifications

Model	AB-031QS(single pack)
Drive motor	3kw
Speed	200~600 pcs/min
Seal	Back side sealing
Material	BOPP or paper material
Straw size	Diameter	Φ4～Φ12 mm
	Length	150～280 mm
Other size made by order
Machine size (L×W×H)	1500×800×1750 mm
Machine weight	350 kg
Model	AB-850XGLJ (Bulk pack)
Max. film width	850 mm
Packing Speed (Adjustable)	3-10 bag/min
Film thickness	0.03-0.06 mm
Bag Length	90–600 mm
Bag Width	80–250 mm
Straw quantity	50-500 pcs
Power Supply	220V , 50/60 Hz , 4 KW, 1 Phase
Machine Size (L x W x H)	3100 × 1500 x 1550 mm 2000 x 800 x 1200 mm
Machine Weight	750 Kg

Main Electrical Parts

AB-031QS
Name	Model	Quantity	Brand
Touch screen	TPC-7062HW	1	Weinview
PLC	FPOR-C32T	1	Panasonic
Servo motor	1300W	1	Inovance
Servo motor	750W	1	Inovance
Servo motor	400W	2	Inovance
Relay	HHC68A-2Z	3	Xinling
Air switch	C20C16	1/3	CHNT
Power supply	LRS-50-24	1	Meanwell
Valve		1	Smuk
Photoelectric switch	CX-441	1	Panasonic
AB-850XGLJ
Name	Model	Quantity	Brand
Touch screen	TK6071iQ	1	Weinview
PLC	FP-X0 M60R	1	Panasonic
Servo motor	HJ-KS102J	1	Mitsubishi
Relay	RXM2LB2BD	7	Schneider
Air switch	C25/C10	1/4	Schneider
Power supply	ABL2REM24015H	1	Schneider
Valve		1 Set	Smuk
Photoelectric switch	Z3N-TB22	1	Julong

Choose this two-stage line when each straw must be individually wrapped before 50–500 finished packs are loaded into an outer bag. Choose the AB-600D or AB-600V when unwrapped straws are packed directly as a group.
