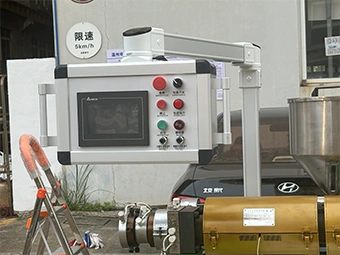

Full Servo Three Color Straw Extruder

The AB-50QS-3 is a full servo three-color straw extruder designed for producing multicolor and striped drinking straws from PP, PLA and other compatible extrudable materials. Its 50 mm extrusion system, servo-controlled drive, controlled heating, stainless-steel cooling tank and synchronized haul-off and cutting system support stable three-color production at approximately 500–830 pcs/min.

Output (kg/h)：

30-35 kg/h

Contact expert Go back

AB-50QS-1 Full Servo Straw Extruder

Model		AB-50QS-1
Feature	Material	PP, PLA
	Color	1
	Straw diameter	Φ5 ~ φ8 mm
	thickness	0. 10 ~ 0.35 mm
	Straw length	120mm ~ 280 mm
	Capability	400 ~ 1200 pcs/min
	Extruding output range	20 ~ 35 kgs/hr
Extruder	Main Screw diameter	Φ50 mm
	Screw L/D	28:1
	Main driving motor	22 Kw (Servo motor)
	Gearbox	ZLYJ133
	Automatic thermo-controller	5 sets
	Heating power	15 kW (Far-infrared radiant heating)
	Raw Material Drying Device	Option
	Automatic feeding raw material system	Option
	Cooling fan motor	3 sets
Water cooling tank	Forming device	1 set


	Vacuum Pump motor	2. 2 kW (Option)
	Water storage tank	(length) 4600mm / 304 Stainless steel
	Base frame material	(304 Stainless Steel)
	Blow-dry device	1 set
Take up & Cutting Unit	Take up unit	1 set


	Servo motor	1.3kW×2
	Cutting knife unit	1 set
	angle of port	90°/60°/45°
	Blow-dry device	1 set
Others	Air compressor	1.5kw (Option)
	Air compressor	1.5kw (Option)
	Dimension (L×W×H)	9m×1.4m×1.8 m
	Machine Weight	2000 kgs

Auxiliary Device

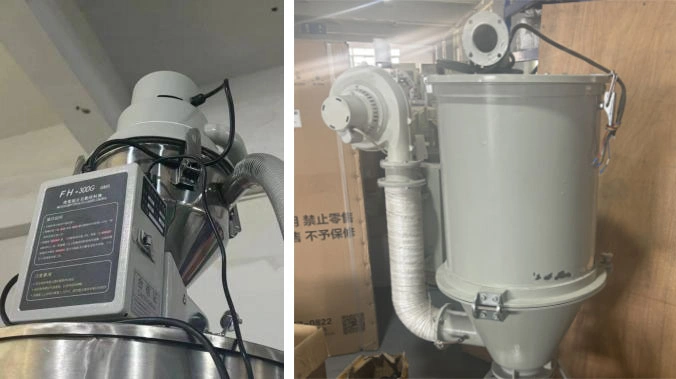

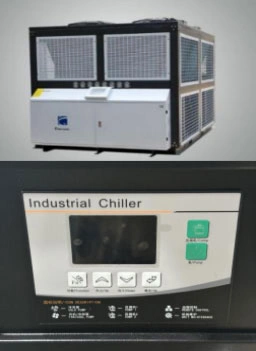

Dryer: Raw materials PLA need to use dryer first, and then feed into the vacuum loading machine. Chiller: Keep the temperature of the cooling tank steady

	5 HP Chiller
	Power Supply 220V/AC±10%
	50/60HZ
	Switch Output:5 relays
	Temperature Range:-40~100°C
	Switch Input:8 passive signal inputs
	WorkingEnvironment:-20℃-70℃,≤85%RH
	non-condensation
	Analog Input:1 NTC temperature sensor
	Current Input:3 ways ofcurrent (0.3~35A)

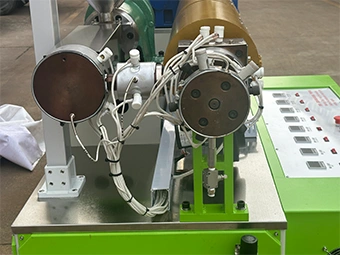

AB-50QS-3 Full Servo System Three Color Straw Extruder

Model	AB-50QS-3
Speed	500-830 pcs/min
Material	PP/PLA/PBS/PHAetc
Straw Diameter	Φ5-Φ13mm
Straw Color	3
Straw Length	120mm-3000mm
Cooling Tank	1
Main Screw	Φ50
Screw LD	33:1
