AB-600LJG

Multi Pen Packing Machine

The AB-600LJG multi pen packing machine is designed for grouping and packing 10–50 pens per bag with OPP film. It supports pen diameters from 6 to 14 mm, bag lengths from 90 to 800 mm and working speeds of approximately 3–10 bags/min. Touchscreen adjustment, servo motor drive and photocell tracking help support stable operation for printed-film packaging and product assembly-line integration.

Contact expert Go back

Multi-Pen Set Packing

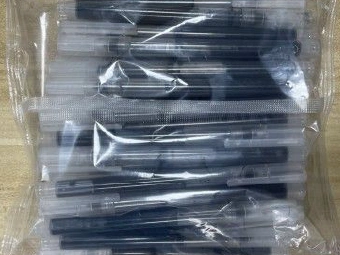

The AB-600LJG is designed to pack multiple pens into one OPP film bag, with adjustable quantities from 10 to 50 pieces per pack.

Adjustable Pen Quantity

Operators can adjust the required pen quantity according to the final sales pack, stationery set or production order requirement.

Photocell Tracking for Printed Film

High-precision photocell tracking detects printed film marks and helps align bag length, sealing and cutting positions during packaging.

Automatic Bag-Length Detection

Bag length can be detected automatically by the photocell system when printed film is used, reducing manual adjustment during format changeover.

Assembly-Line Integration

The machine can be integrated with a product assembly line or upstream feeding system according to the final packaging layout.

Main Technical Parameters

Model	AB-600LJG
Film width	530 mm
Packing material	OPP
Pen diameter	6-14 mm
Pen quantity	10-50 PCS
Bag length	90-800 mm
Product width	50-180 mm
Product height	1-120 mm
Working speed	3-10 Bag/min
Total power	3.5 Kw
Voltage	AC 220 V, 50/60 Hz
Machine weight	Approx. 700 kg
Machine dimension (L×W×H)	3,000 × 3,200 × 1,500 mm

Choose the AB-600LJG when multiple pens need to be grouped and packed in fixed quantities. Choose the AB-600 flow packing machine when single products or general items need standard horizontal pillow packaging.

How the AB-600LJG Packing Process Works

Pens are arranged through the upstream feeding or assembly section.
The required quantity is set through the touchscreen.
The machine groups 10–50 pens according to the selected pack format.
OPP film is pulled and positioned around the grouped pens.
Photocell tracking detects printed film marks when printed film is used.
The sealing and cutting system forms the finished bag.
Finished pen packs are discharged for collection or downstream handling.
