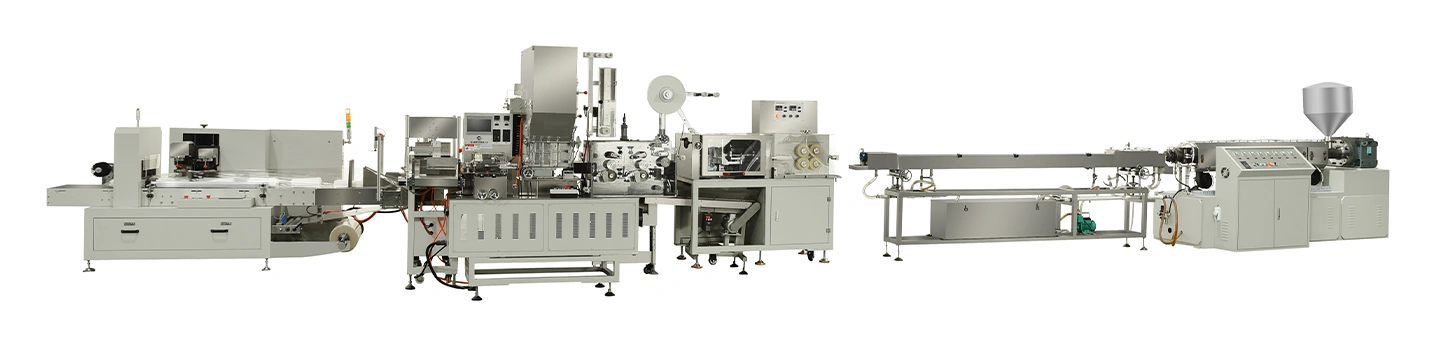

Fully Automatic Straw Production Line
Suitable for a wide range of materials including PP, PLA, and PHA · Integrated solution from extrusion to packaging
|
Model |
AB-50PP |
||
|
Power supply |
Main Screw motor |
380V,3 Phase,50Hz,30Kw, frequency inverter |
|
|
Heater |
15Kw（8Set，2sets for mould，Others 6 sets） |
||
|
Main motor |
380V,3 Phase,0.75Kw, speed adjust by frequency inverter |
||
|
Cutter motor |
380V,3 Phase,0.75Kw,Speed adjust by frequency inverter |
||
|
Cooling |
Cooling fan 6 sets Water cooling 1 set |
||
|
Total Power |
48Kw |
||
|
Temperature controller |
8Sets |
||
|
Straw specification |
Straw material |
PLA, PP |
|
|
Diameter |
Φ2-Φ13mm |
||
|
Length tolerance |
0.1-1mm |
||
|
Working Speed |
600~1000pcs/min |
||
|
Color |
1 |
||
|
Cut angle |
90°/60°/45° |
||
|
Machine dimension |
9m*1m*1.3m |
||
|
Machine weight |
1.5 Ton |
||
|
Power supply |
380v 50-60Hz |
|
Power |
9KW |
|

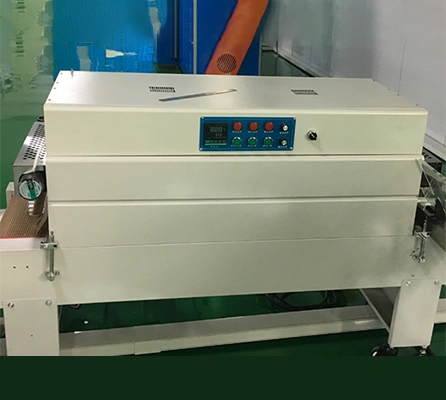

Dryer dimension (LxWxH) |
1000×400×1200mm |
|
Max. product dimension（WXH） |
350x150mm |
|
Working speed |
0-15m/min |
|
Product weight |
Max. 20kg |
|
Machine dimension (LxWxH) |
1200×560×660mm |
|
Machine weight |
80kg |
|
Power supply |
220V 50-60HZ |
|
Power |
2KW |
|
Straw length |
140-280mm |
|
Straw diameter |
6-12mm |
|
Working speed |
Max. 1000Pcs/min |
|
Machine dimension(LxWxH) |
2300x580x1800mm |
|
Machine weight |
220kg |
|
Model |
AB-031QS(single pack) |
|
|
Drive motor |
3kw |
|
|
Speed |
200~650pcs/minute |
|
|
Seal |
Back side sealing |
|
|
Material |
BOPP or paper material |
|
|
Straw size |
Diameter |
Φ4～Φ12mm |
|
Length |
150～280mm |
|
|
Other size made by order |
||
|
Machine size and weight |
1500 × 800×1300mm 300kg |
|
|
Model |
AB-850XGLJ (Bulk pack) |
|
Max. film width |
850mm |
|
Packing Speed(Adjustable) |
3-10 bag/min |
|
Film thickness |
0.03-0.06mm |
|
Bag Length |
90–600mm |
|
Bag Width |
80–250mm |
|
Straw quantity |
50-200pcs |
|
Power Supply |
220V , 50/60 Hz , 4 KW, 1 Phase |
|
Machine Size (L x W x H) |
2600 × 1500 × 1550 mm 2000 × 800 × 1000mm |
|
Machine Weight |
750 Kg |

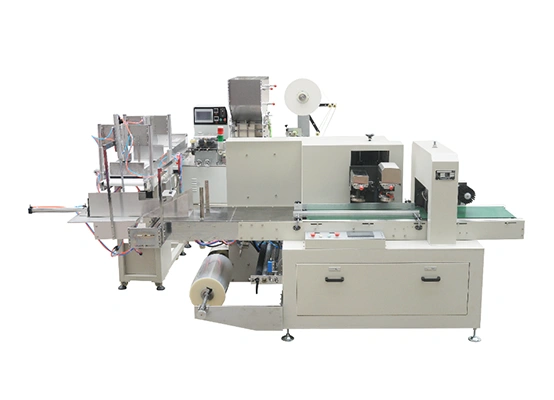

This machine is suitable for packing groups drinking straw in one bag , 50-200pcs can be packed together.
1. Human-Machine Interface in English, adopt touch screen.
2. Bag length can be set in touch screen and cut in one step.
3. Adopt high accuracy photocell tracking systems.
4. Automatic counting function.
5. Bag length detect automatically , easy to operate.
The AB65J drinking straw extruder combines extrusion, cooling, hauling and cutting for continuous production of PP and PLA drinking straws. With a 65 mm extrusion system, adjustable cooling tank and frequency-controlled drive, it support...
Our production lines are designed to meet international food contact safety standards, including FDA (US Food and Drug Administration), EU 10/2011, LFGB (German Food Safety Standard), and national GB standards for food-grade plastic products. All equipment and production processes strictly follow these regulations to ensure final straw products are safe for food and beverage use.
The line supports PP/PLA/PBS/PHA, and other biodegradable materials. We require raw materials to provide material safety data sheets (MSDS) and food contact test reports. The production line is equipped with raw material purification and drying systems to remove impurities and moisture, preventing defects caused by substandard raw materials.
Yes. High-precision visual inspection systems and photoelectric sensors are installed to detect defects such as length deviation, cracks, holes, and contamination in real time. Unqualified products are automatically rejected and separated without entering the packaging process, ensuring 100% qualified rate of finished products.
For customers who purchase the entire ANBO line, we offer:
