Different unit dimension
Unit Name	Dimension (mm)	Unit Name	Dimension (mm)
Winding & control unit	172010501680	No glue heating device	13007501320
Multi-cutting system	19506501450	Conveyor	12004001050
Paper roller bracket	112013002050	Straw Collector	16505201080

Specification and Parameter
Model number	No glue paper straw machine （AB-20）
Technical parameter		Control system
Layer of paper	3 layers	PLC controller	Schneider
Max. diameter	12mm	Human machine interface	Schneider
Min. inner diameter	5.3mm	Program version	AB-XJ 2.0
Max. thickness	0.4mm	Servo system	Schneider
Min. thickness	0.2mm	Performer	Schneider
Min. length	90mm	Max.length（between 2 blades）	1380mm
Output speed	3-70m/min	Signal component	Omron
Winding system	2 servo/1 pc belt	Pneumatic component	Airtac
Cutting way	8 knives pneumatic/1 servo	synchronous control	Synchronous belt
Glue method	heating	Sync tracking cutting system	Servo sync tracking system
Lenght control	encoder	assemble
Operator	1 person	Tube rack	Have
Mandrel fixing	Screw clamp	Belt angle adjustment	Wheel adjustment
Speed control	servo	Belt tension adjustment	Wheel adjustment
Power input	3P/380V/50HZ	Paper-break stop function	have
Dimension
Machine dimension	4250×640×1600mm	Lubrication	Electric roller
Floor area	9500×3500×1900mm	Paper tension control	Continuous tension control
Wheel diameter	195mm	Paper holder	Automatic paper connecting holder
Wheel height	100mm	Belt	Piece baseband
Max. spin speed	200r/min	Total weight	1350KGS

Working Principle and short instruction

Material: food grade white craft paper and No glue heating device;

Sub-raw material: may need oil for lubrication and cooling. White mineral oil.

Standard electric power: 380V/ 3phase/ 50Hz, could change by special requirement, like 60Hz or 220V/ 3 phase.

Electric consumption: Rated power, 6.15KW/h

FLA( Full load amp): 13.5A

Capacity:

How many pieces straw per minute. For example: 60m/min, making 6*197mm straws. Consider some waste, we use 200mm for calculating.

60*1000/200=300 pcs/minute.

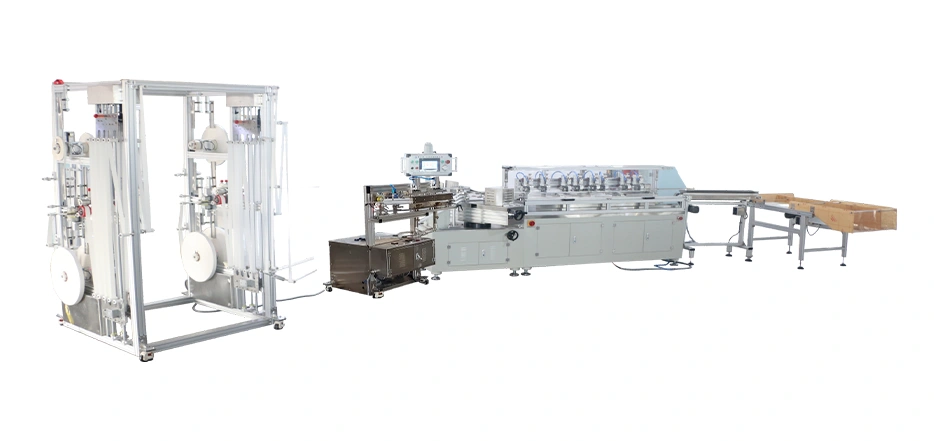

No glue paper straw machine (5 servo motors)

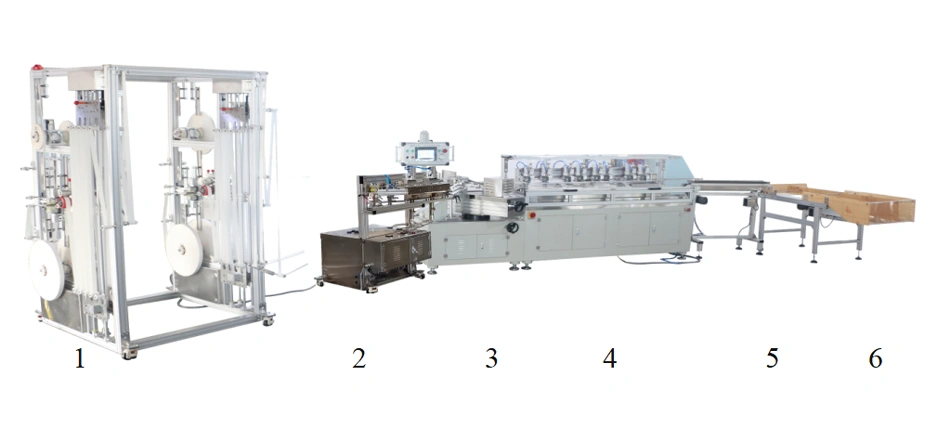

Total machine includes 6 parts: from left to right side

1. Paper roll hanging bracket, 3 layers, auto connecting/splicing.

2. No glue heating device.

3. Winding and control mechanism。

4. Multi-cutting system, 8 cutting knives with dust & protecting cover.

5. Conveyor.

6. Collector.

Advantage of AB-20 no glue:

Higher Speed，max 60m/min input, 70m/min output.

8 cutting-knife system, new structure of cutting cylinder. Easier to adjust air cylinder up and down when making different diameter paper straws.

5 sets servo motor for spiraling roller, cutting system moving left & right, supporting roller and cutting knifes.

Auto paper roll connecting function hanging bracket, auto splicer, 3 layers. Other brand paper straw making machine paper roll hanging bracket is only 3 layers.

No glue heating.

Auto lubrication grease feeding system for cutting system.

Main electric parts choose famous brand, Schneider. Like main servo motor, servo motor driver, frequency converter, touch screen .

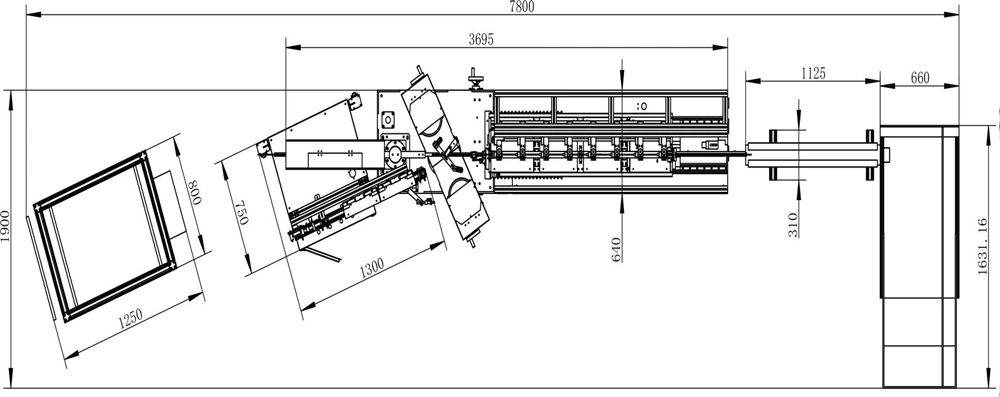

Overall size

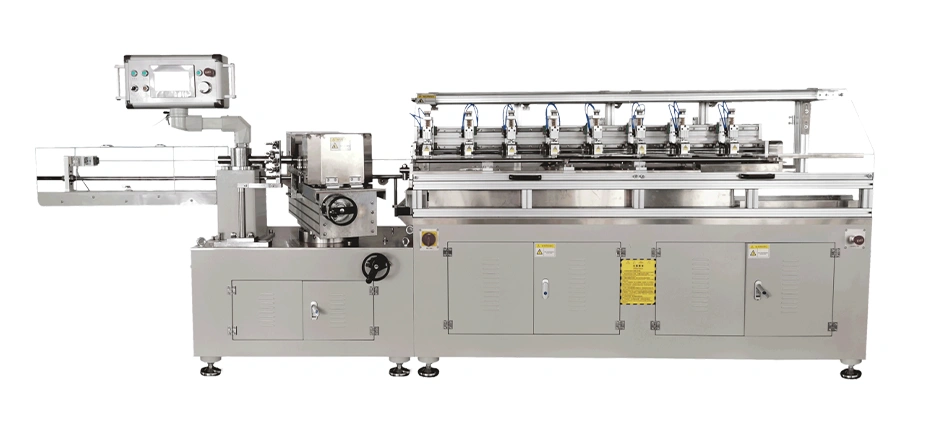

Paper straw making mechanism



Cutting blade	Mould Anti-vibration roller	Pull rod force sensor	Electric socket and cooling fan
Cutting blade material: W6Mo5Cr4V2

Unit Name

Description and advantages

Winding&control mechanism

Multi-knife cutting system

Carbon steel;

5 sets servo motor;

Dust & protect cover;

Language: Chinese, English, Spanish, Polish, Vietnamese, Portuguese and so on;

High and low voltage electric equipment separated isolation;

Laser cutting and heat treatment to avoid micro shaking;

Longer service life;

Famous brand electric equipment: Schneider

High speed and stable working;

Safety labels for protecting method;

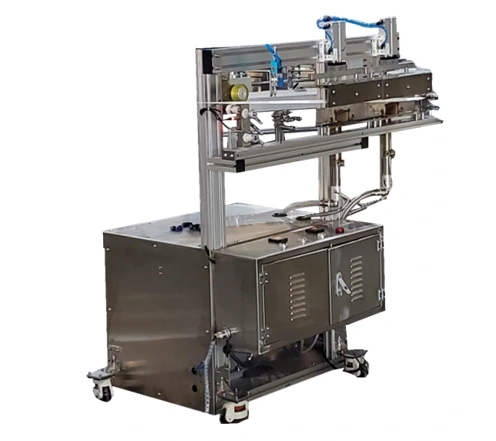

No glue heating device

	Unit Name	Description and advantages
	No glue heating device	Preheat device
		Heat up gradually
		Cover a small floor area
		Rapid heat dissipation

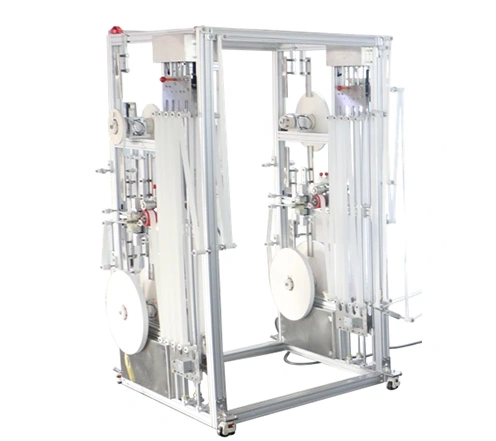

Paper roll hanging bracket with connecting function

Description and advantages

1. Help paper straw making machine no stop working.

2. Use auto detection: When the paper roll is going to use out,
the mechanism will cut the tail ends of old paper roll and connect
new paper roll automatically.

3. Smaller dimension, easy delivery and moving to adjust paper feeding angle.

4. Construction simpleness. If paper break, no need to stop to route the paper up and down complicated.

5. Constant unwinding force for the paper rolls, to let paper feeding more smoothly.

6. Optional choose: 4 layers connecting mechanism.

Drinking straw packing line include 3 parts:

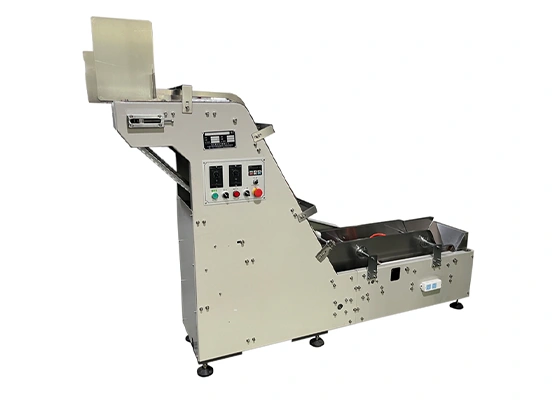

1.Automatic Elevator

2.Straw packing machine-online(single packing + bulk packing machine)

Power supply	220V 50-60HZ
Power	2KW
Straw length	140-280mm
Straw diameter	6-12mm
Working speed	Max. 1000Pcs/min
Machine dimension (LxWxH)	2300x580x1800mm
Machine weight	220kg

Model	AB-031QS(single pack)
Drive motor	3kw
Speed	200~600pcs/minute
Seal	Back side sealing
Material	BOPP or paper material
Straw size	Diameter	Φ4～Φ12mm
	Length	150～280mm
Other size made by order
Machine size and weight	1500 × 800×1750mm 350kg

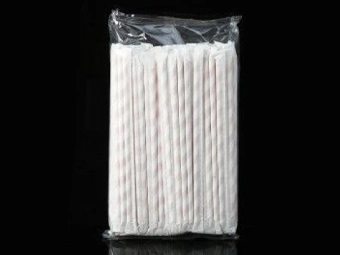

Model	AB-850XGLJ (Bulk pack)
Max. film width	850mm
Packing Speed (Adjustable)	3-10 bag/min
Film thickness	0.03-0.06mm
Bag Length	90–600mm
Bag Width	80–250mm
Straw quantity	50-500pcs
Power Supply	220V , 50/60 Hz , 4 KW, 1 Phase
Machine Size (L x W x H)	3100 × 1500 x 1550 mm 2000 x 800 x 1200mm
Machine Weight	750 Kg

Type	6 cutting knife	9 cutting knife
Sub-model	ABZGJ-5	ABZGJ-20
Straw diameter	inner diameter 5.3-12.3mm	inner diameter 3.5-11.3mm
Straw diameter	out diameter 6-13 mm	out diameter 4.3-12 mm
Min-Max straw length	120mm-150mm	120mm-150mm
Max speed	55 m/min (output speed)	110m/min (output speed)
Max speed		110 m/min (paper input)
