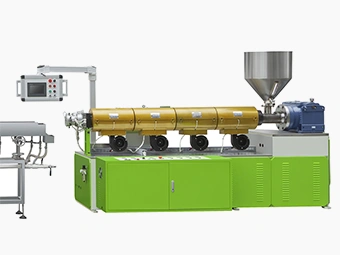

AB-65QS

Full Servo Straw Extruder

The AB-65QS full servo straw extruder is designed for high-speed production of PP, PLA, PBS, PHA and other compatible extrudable straws. A 65 mm screw, 33:1 L/D ratio, servo drive, controlled heating and synchronized hauling and cutting support stable extrusion output of 50–65 kg/h and production speeds up to 1800 pcs/min, depending on straw dimensions and material formulation.

Output (kg/h)：

60 kg/h

Contact expert

Go back

High-Speed Single and Two-Color Extrusion for PP, PLA, PBS and PHA Straws

Special designed 65mm, L/D 33:1 screw, used for PLA and PP material, 173 hard surface gearbox, 30kw high efficient & saving servo motor.
Far-infrared radiant heating is highly efficient & saving energy. A cooling fan can help stabilize the heating temperature.
Automatic feeding and drying raw material system.

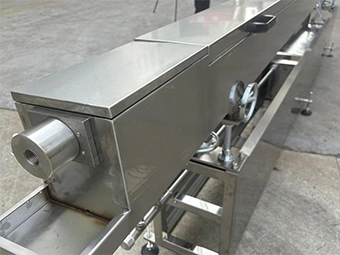

Full Servo Straw Extruder in stainless steel can be adjusted in three planes
The haul-off unit can be a belt or rollers; it is customizable, fitted with a double rotary cutter.
Cut angle: 90 °/45 °, 90 °/60 °
Full servo control for higher precision and stability
High-speed straw extrusion with smooth surface
Stable operation, low noise, and low energy consumption

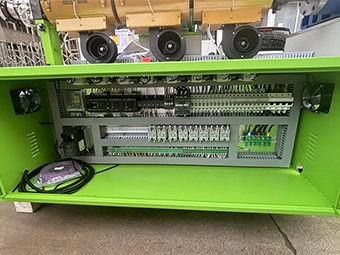

PLC touch screen control, easy operation
Automatic diameter and length adjustment
Reliable structure, long service life
Suitable for various plastic drinking straws

AB-65QS Full Servo Straw Extruder

Model		AB-65QS
Feature	Material	PP PLA PBS PHA
	Color	1
	Straw diameter	Φ2~φ13 mm
	thickness	0. 10~0.35 mm
	Straw length	120mm~300 mm
	Capability	400~1800 pcs/min
	Extruding output range	50~65 kg/h
Extruder	Main Screw diameter	Φ65 mm
	Screw L/D	33: 1
	Main driving motor	30 kW (Servo motor)
	Gearbox	ZLY173
	Automatic thermo-controller	6 set
	Heating power	15 kW (Far-infrared radiant heating)
	Raw Material Drying Device	1set (Option)
	Automatic feeding raw material system	1set (Option)
	Cooling fan motor	4 set
Water cooling tank	Forming device	1 set
	Vacuum Pump motor	2. 2 kW (Option)
	Water storage tank	(length) 3600 mm /304 Stainless steel
	Base frame material	(304 Stainless Steel)
	Blow-dry device	1 set
Take up & Cutting Unit	Take up the unit	1 set
	Servo motor	1.3kW×2
	Cutting knife unit	1 set
	angle of port	90°/60°/45°
	Blow-dry device	1 set
Others	Air compressor	1.5kw (Option)
	Dimension (L×W×H)	9.5m×1.4m×1.8 m
	Machine weight	2400 kgs
Auxiliary Device
Dryer: Raw materials PLA, need to use the dryer first, and then feed it into the vacuum loading machine. Chiller: Keep the temperature of the cooling tank steady

	5 HP Chiller
	Power Supply 220V/AC±10%
	50/60Hz
	Switch Output:5 relays
	Temperature Range:-40~100°C
	Switch Input:8 passive signal inputs
	WorkingEnvironment: -20℃-70℃, ≤85%RH
	non-condensation
	Analog Input: 1 NTC temperature sensor
	Current Input: 3 ways of current (0.3~35A)

AB-65QS-2 Full Servo System Two Color Straw Extruder

Model	AB-65QS-2
Speed	500-830 pcs/min
Material	PP/PLA/PBS/PHA etc
Straw Diameter	Φ5-Φ13mm
Straw Color	2
Straw Length	120mm-3000mm
Cooling Tank	1
Main Screw	Φ65
Screw LD	33:1
